Nothing like the feel of a real, analog, tube EQ!
Star Treq is a 2 channel tube EQ with a fully discrete signal path, hybrid topology: pentodes supply the main bulk of gain needed to provide sweet equalization and a precise, yet smooth action, and transistors are used as buffers to drive the output transformer and the subsequent units in the signal chain.
Each of the 2 channels has 5 filter boards that are 100% passive and use real inductors and capacitors to realize bell-shaped EQ curves. The first and the last band can also be switched into shelving mode.
The bandwidth (“Q” factor) can be adjusted approximately between .2 and 9. There are 12 frequency steps per band, set by rotary switches. Gain and Shape pots are detented for easier recall. This EQ has the highest headroom in the industry thanks to dual 150V supply rails, meaning that both the tubes and the transistors in the main EQ boards effectively run on 300VDC.
Star Treq’s tonal character can be described as sweet yet transparent. It will add just a pinch of coloration to your tracks, while preserving their definition. Use it for tracking, mixing, mastering, anything in the studio.
Like with all of our units, all the supply rails are fully regulated for smooth and hum-free operation.
For the detailed explanation of all Star Treq’s functions, please read the Star Treq user manual.
Star Treq is built to order and the turnaround time is 6 weeks after a placed order.
Drop us a line through the contact box or call if you would like to order one.

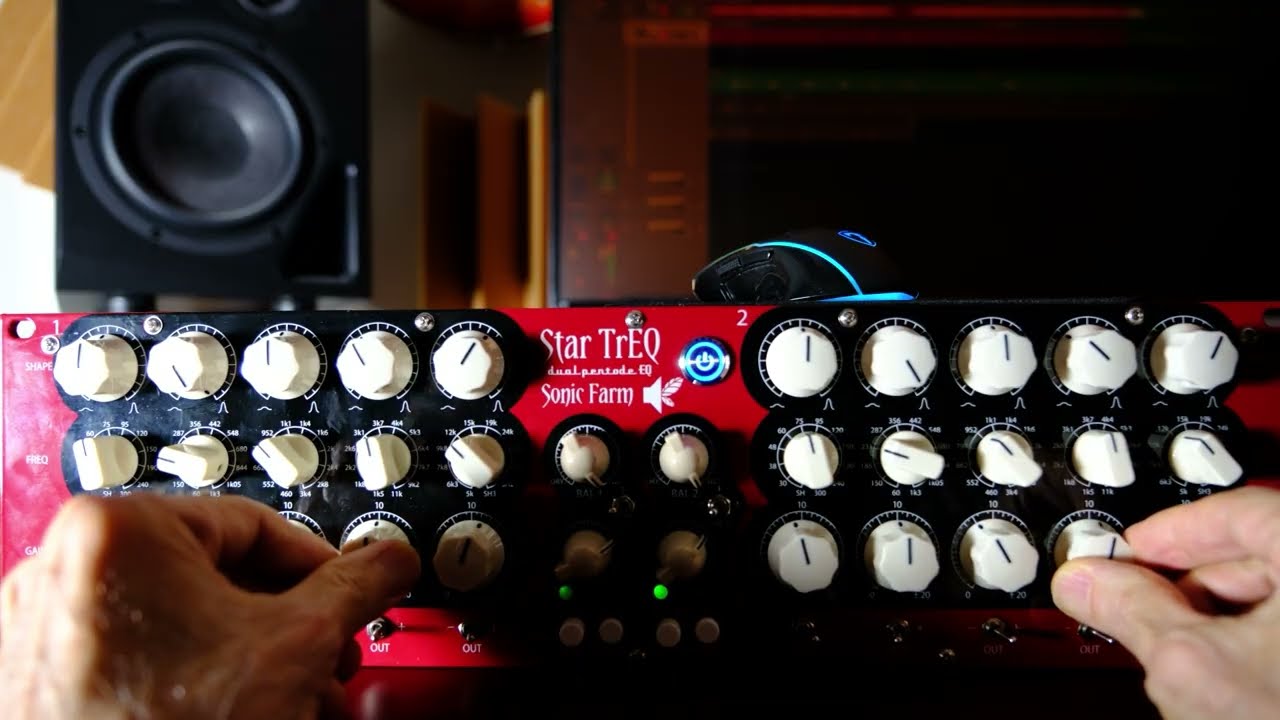

(video coming soon)
Technical Specifications
Design concept: (tube) pentode hybrid equalizer, transformer output
2 channels
Input impedance: 20kOhm
Output mode: Transformer or solid state balanced driver
Maximum cut or boost per band: depends on the shape setting, between 6 and 26dB.
Frequency response: 10Hz-50kHz +/- 3dB
Max input level: ≈28.78dBU
Maximum output level: ≈57.54dBu
Harmonic distortion: <1% before clipping level, quickly decreases if driven less.
Minimum output load: 600Ohm
Connectors: XLR input and output, balanced only
Power consumption: ≈50W
All supply voltages regulated (including heater)
Dual 150V tube supply voltage
Gold plated printed circuit boards with a double copper layer.
Gold plated tube sockets
The Star Treq can be ordered with Ni-Fe alloy or pure Steel output transformers:
Srar Treq A: 2 Ni-Fe alloy core output transformers
Star Treq B: 2 pure Steel core output transformers (the choice of most people)
We give a one year warranty on parts and labor.
