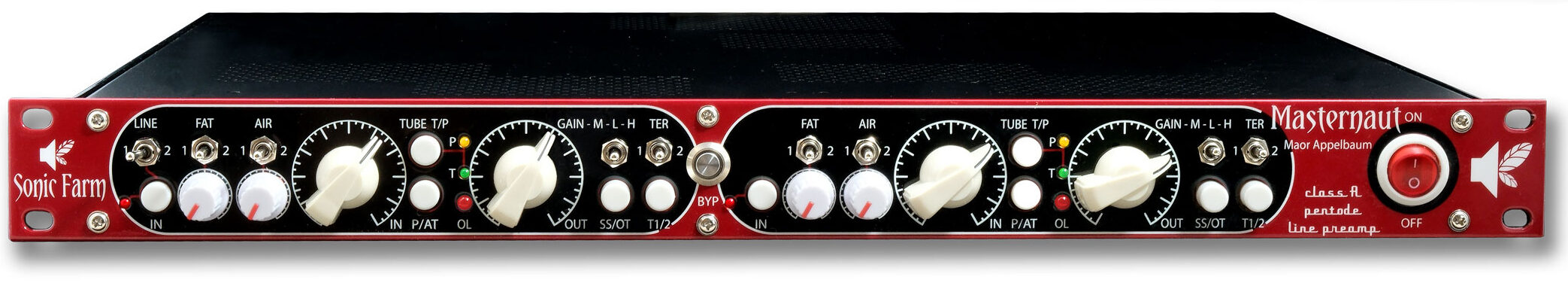

Masternaut Dual Pentode Preamplifier

$3,175.00

Masternaut is is a stereo line signal conditioner and soft clipper, aimed at improving the sound of digital stereo busses and digital PA boards.
Sure, you can use a plugin to address the issue of “digitalitis”, but Masternaut stands out above all of those because it delivers!
No gunked-up low-mids, darkened highs or nasally/harsh high-mids. You get a subtle but game-changing glue effect that just makes your mix sound more organic.

Built on the heels of the very successful Creamliner, the Masternaut adds a 3-pos gain switch, enabling one to drive the tubes for the desired level of saturation, while automatically adjusting the output so that there is no change in loudness. When the unit’s calibration is defeated, one can drive the unit into deeper clipping by adjusting the input drive control. The Fat and Air boost can be applied at 2 different frequencies. There are 2 output transformers for a broader tonal variety. Those can be switched in and out of termination for a subtle “presence” effect. All the controls are stepped.
See the manual for details.



Prefer to see prices in a different currency?

Reset
- +
Category:

TECHNICAL SPECIFICATIONS:

Design concept: (tube) pentode hybrid line signal conditioner, transformer input and output
2 tube modes: triode and pentode
2 channels
Output mode: Transformer or solid state balanced driver
Frequency response: 10Hz-50kHz +/- 3dB
Harmonic distortion: <2% before clipping level, quickly decreases if driven less.
Maximum output level: 32dBu
Minimum output load: 600Ohm
Connectors: XLR, balanced only
Power consumption: 30W
All supply voltages regulated.
285V Plate voltage for huge headroom
Gold plated printed circuit boards with a double copper layer.
Gold plated tube sockets

We give a one year warranty on parts and labor.

Weight 8.5 kg
Dimensions 61 × 51 × 18 cm
